Table Size
|
1500 mm x 3000 mm
|
|
Z Axis Working Distance
|
200 mm
|
|
Laser Source
|
Raycus – 2000w |
|
Laser Source Power |
1500 w - 2000 w - 4000 w |
|

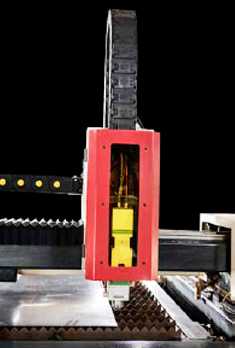

Cutting Head
|
“Autofocus
Auto Torch Height Control System “ |
|
Axis Motors |
X Ekseni – Delta - Servo - 2 x 1,5 kw
Y Ekseni – Delta - Servo - 1 x 1,5 kw
Z Ekseni – Delta – Servo(Frenli) - 1 x 0,75 kw |
|
Axis Speed |
X ve Y Axıs 65 Mt / Mn. Z Axis 20 Mt / Mn. |
|
Servo Gearbox |
Servo Planet Reductor |
|
X Axis Mechanical Equipment
|
25 Mm Linear Ray-Araba ve Helis Kremayer Pinyon ve Dişli |
|
Y Axis Mechanical Equipment |
30 Mm Linear Ray-Araba ve Helis Kremayer Pinyon ve Dişli |
|
Z Axis Mechanical Equipment |
20 Mm Linear Ray-Araba ve Helis Kremayer Pinyon ve Dişli |
|
Axial Position Accuracy |
± 0,05 |
| Axial Position Accuracy
|
± 0,03 |
| Cnc Control System
|
“Fscut2000
Pc Tabanlı Cnc Kontrol Ünitesi “ |
| Table Type
|
Tek Tabla |
| Table Change Time
|
12 min. |
| Cooling System / Chiller
|
Su Soğutmalı Chiller |
| Asist Gas
|
Hava - Oksijen - Azot |
| Graphic Format
|
Dwg / Dxf/Stp |
| Automatic Lubrication System
|
Standart Ekipman |
| Dimensions
|
8250 x 2700 x (H) 2175 |
