WORKING TABLE SIZE |
2100 mm x 3700 mm
|
|
Z WORKING DISTANCE |
200 mm
|
|

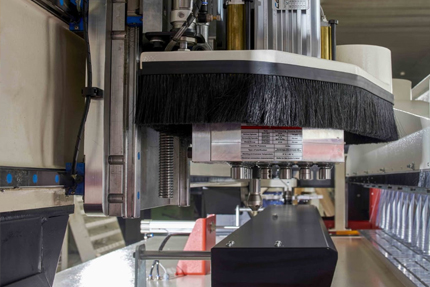

SPINDLE
|
9 Kw – HSKF63 TOL HOLDER
|
|
SPINDLE RPM |
24.000 Rpm
|
|
AXIS MOTION MOTORS AND DRIVERS |
X AXIS - SERVO - 1 X 1 Kw / Y AXIS - SERVO - 2 X 1 Kw / Z AXIS - SERVO - 1 X 0,75 Kw
|
|
AXIS SPEED |
X and Y AXIS 65 mt / min, Z AXIS 20 mt / min
|
|
PLANET GEARBOX |
SERVO REDUCTOR – APEX
|
|
X AXIS MECHANICAL EQUIPMENTS |

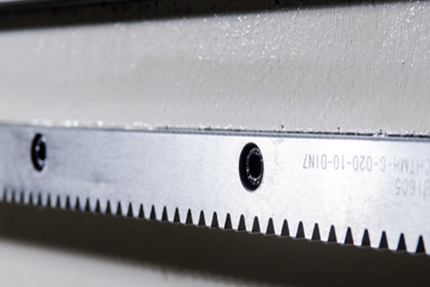

25 MM LINEAR GUIDEWAYS AND HELICAL RACK VE PINION
|
|
Y AXIS MECHANICAL EQUIPMENTS |
30 MM LINEAR GUIDEWAYS AND HELICAL RACK VE PINION
|
|
Z AXIS MECHANICAL EQUIPMENTS |
25 MM LINEAR GUIDEWAYS –BALLSCREW
|
|

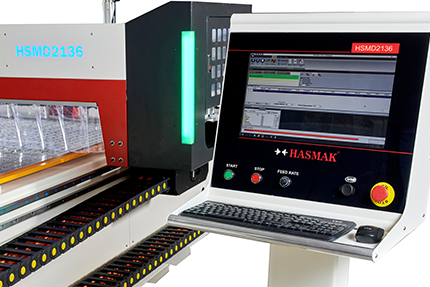

CONTROL SYSTEM |
TPA CONTROLLER – PC BASED CNC CONTROL UNIT
|
|
TABLA TYPE |

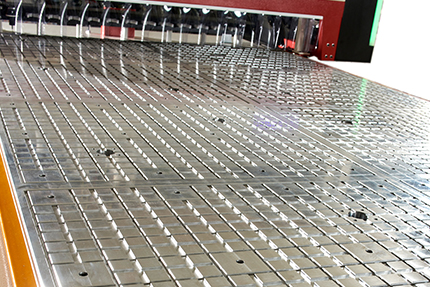

ALUMINIUM TABLE- VACUUM TABLE – 8 ZONES
|
|
VACUUM PUMP |

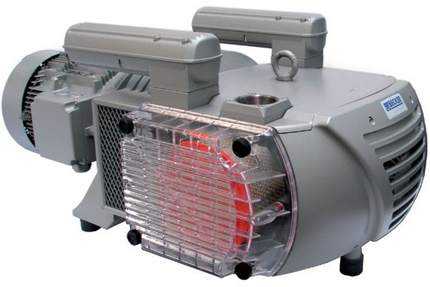

1* 250 M3 / h – DRY TYPE BECKER VACUUM PUMP
|
|
TOOL MAGAZINE |
LINEAR TYPE - 12 TOOLS CAPACITY (STANDARD)
|
|
|
ROTARY MAGAZINE AUTO. – 8 TOOLS (OPTIONAL)
|
|

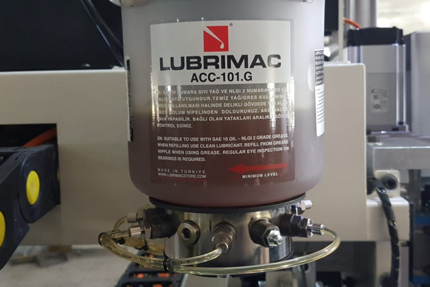

AUTOMATIC LUBRICATION CENTER |
STANDARD EQUIPMENT
|
|

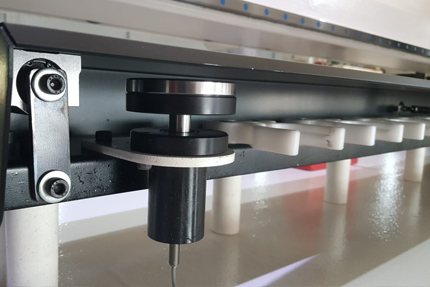

AUTOMATIC TOOL OFSET |
STANDARD EQUIPMENT
|
|

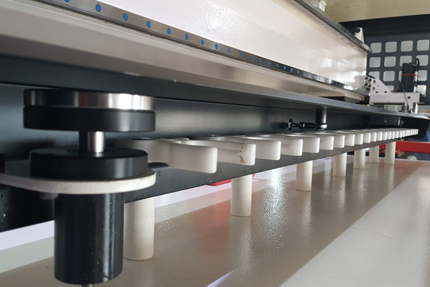

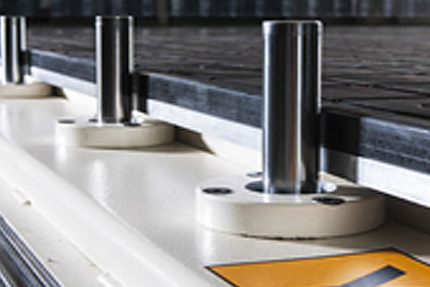

PANEL REFERENCE SHAFTS |
STANDARD EQUIPMENT
|
|

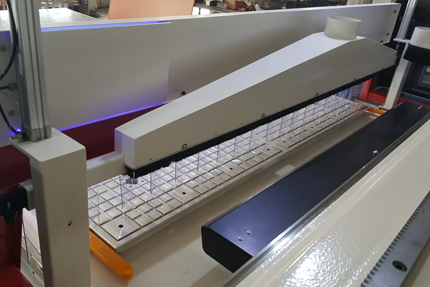

UNLOADING & CLEANNING UNIT |
OPTIONAL EQUIPMENT
|
|
CAD/CAM PROGRAM |
PEGASUS 2D CAD/ CAM (Standart)
|
