Voltage	380 V / 400 V - 50 Hz
Power Requirement	14,5 kW
Edge Band Thickness	0,40 mm - 2,00 mm
Panel Height	8 - 48 mm
Feed Speed	12-16 m / min
Air Pressure Requırement	6 Bar
Pre-Milling Motor	2 x 1,8 Kw - 10.000 rpm
Length Trımmer Motor	2 x 0,37 Kw - 12.000 rpm
Corner Rounding Motor	2 x 0,37 Kw - 12.000 rpm
Additional Top And Bottom Trımmer	2 x 0,37 Kw - 12.000 rpm
Buffers	2 x 0,18 kW
Glue Tank Capacity	2,5 kg
Heat Up Time (Circa)	20 - 30 dk
Dimensions (mm)	5200 mm x 1050 mm x (h) 1500 mm


Wide glue tank
Easy to adjust glue thickness application
Practical adjustment
Safety Limiter (Prevents over panel feeding)
Ejecting the PVC chips with wind brush
Automatic tape infeed by motor
Automatic tape guillotinee
Automatic beam press
Colour touch screen controller

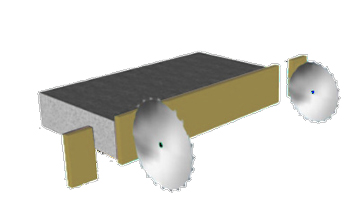

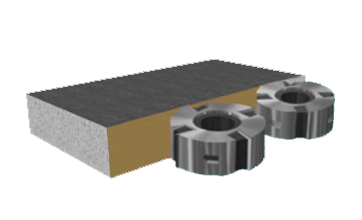

Smooth panel surface with premilling ( 2 motors)
Adjustable infeed fence stock removal for premilling
Pre heating of the panel edge with infrared heater

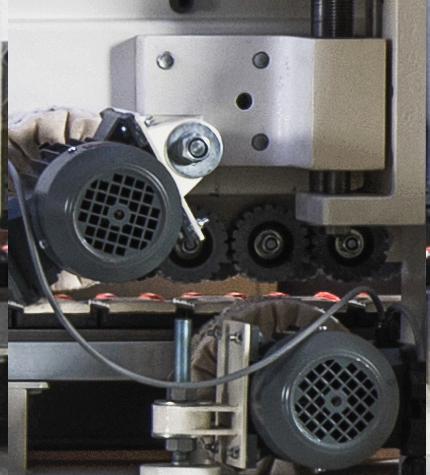

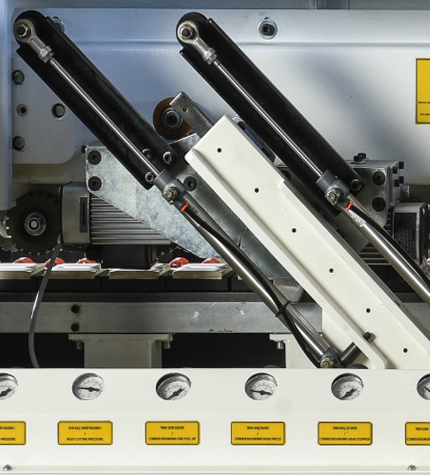

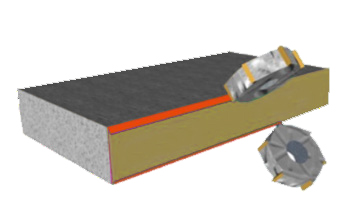

Top and Bottom trim, length trim, corner rounding

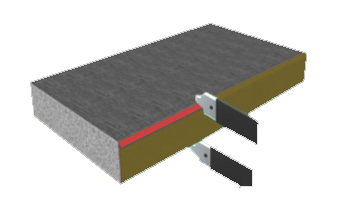

Smooth tape surface with radius scrapers

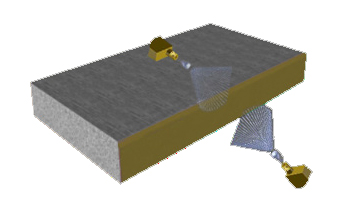

Solvent cleaners

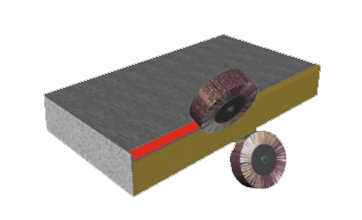

Clean and smooth panel surface with buffing
Lift up safety cover with internal lighting
Lateral Support rail For large panels
Tape support table
