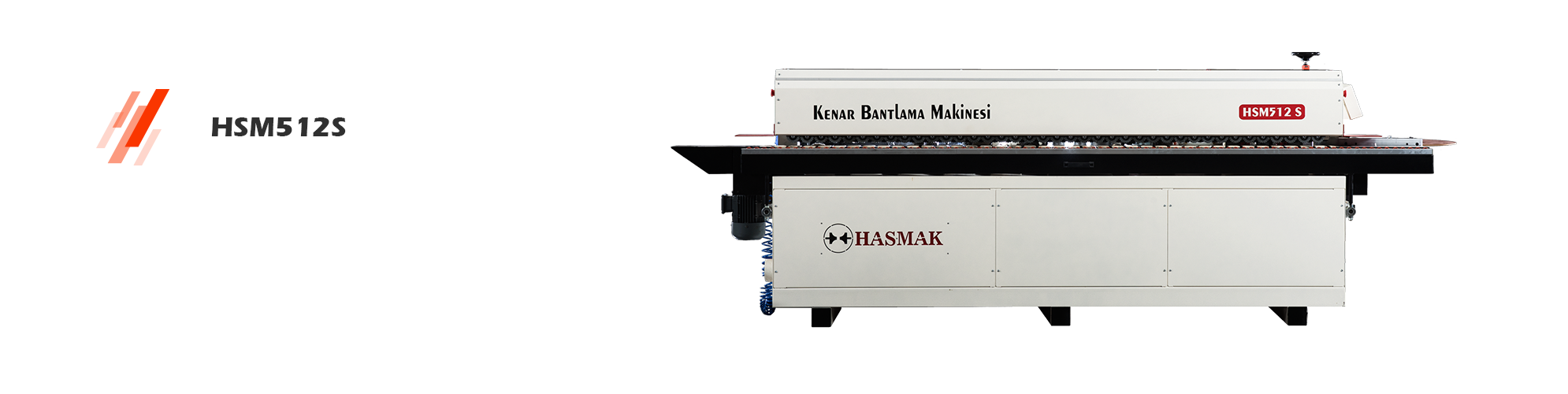

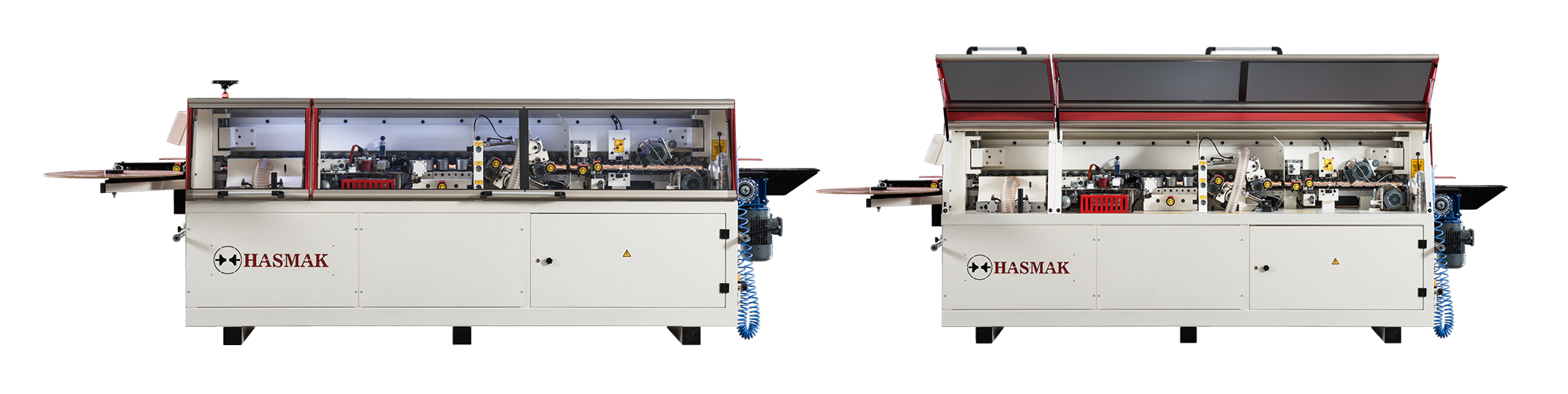

HASMAK - CNC Router - Edge Banding Machine - Wood Working Machine

Voltage	380 V / 400 V - 50 Hz
Power Requirement	12,5 kW
Edge Band Thickness	0,40 mm - 2,00 mm
Panel Height	8 - 48 mm
Feed Speed	12 m / min
Air Pressure Requirement	5,5 Bar
Pre-Milling Motor	2 x 1,8 Kw - 10.000 rpm
Length Trimmer And Corner Rounding Motor	2 x 0,37 Kw - 12.000 rpm
Buffers	2 x 0,18 kW
Glue Tank Capacity	2,5 kg
Heat Up Time (Circa)	20 - 30 dk
Dımensıons (mm)	4250 mm X 1000 mm X (h)1500 mm
Net Weight (kg)	930 kg


Wide glue tank
Easy to adjust glue thickness application
Practical adjustment
Safety Limiter (Prevents over panel feeding)
Ejecting the PVC chips with wind brush
Automatic tape infeed by motor
Automatic tape guillotine
Colour touch screen controller

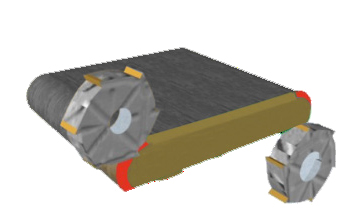

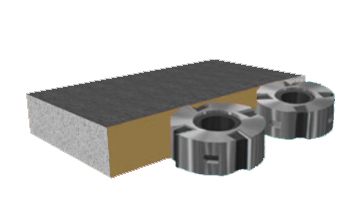

Smooth panel surface with premilling ( 2 motors)
Adjustable infeed fence stock removal for premilling
Pre heating of the panel edge with infrared heater

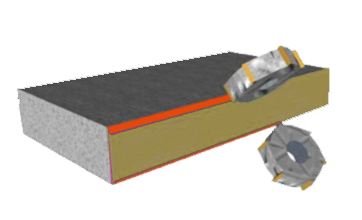

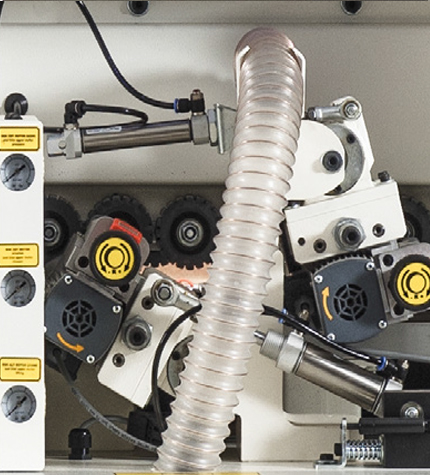

Top and Bottom trim, length trim, corner rounding

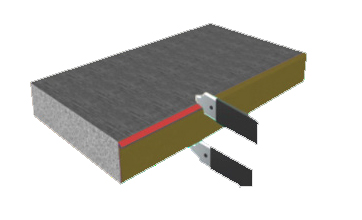

Smooth tape surface with radius scrapers

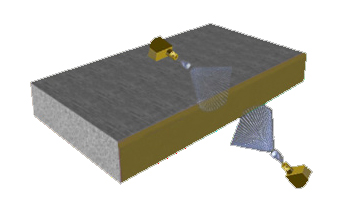

Solvent cleaners

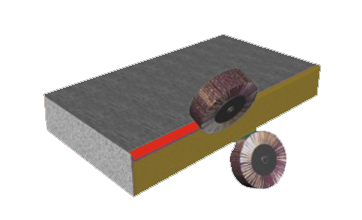

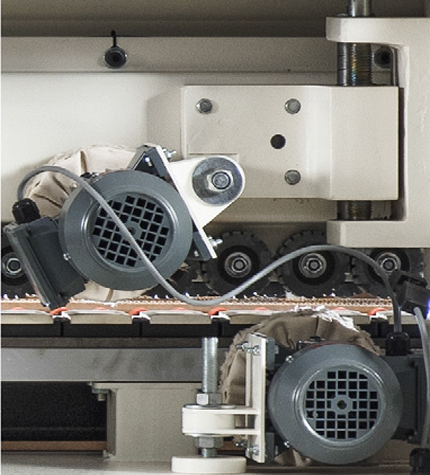

Clean and smooth panel surface with buffin
Integrated dust extractor
Lift up safety cover with internal lighting
Lateral Support rail For large panels
Tape support table
