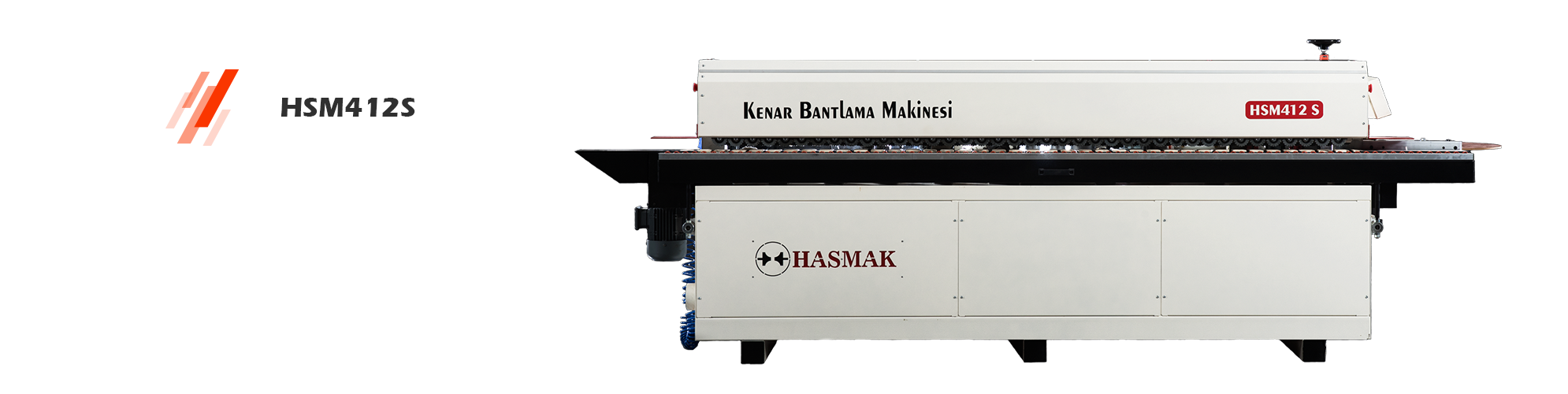

HASMAK - CNC Router - Edge Banding Machine - Wood Working Machine

Voltage	380 V / 400 V - 50 Hz
Power Requirement	6,5 kW
Edge Band Thickness	0,40 mm - 2,00 mm
Panel Height	8 - 48 mm
Feed Speed	12 m / min
Air Pressure Requirement	5,5 Bar
Length Trimmer and Corner Roundıng Motor	2 x 0,37 Kw - 12.000 rpm
Buffers	2 x 0,18 kW
Glue Tank Capacity	2,5 kg
Heat Up Time (Circa)	20 - 30 dk
Dimensions (mm)	3500 mm x 1000 mm x (h)1500 mm
Net Weight (kg)	750 kg


Wide glue tank
Easy to adjust glue thickness application
Practical adjustment
Safety Limiter (Prevents over panel feeding)
Ejecting the PVC chips with wind brush
Ejecting the PVC chips with wind brush
Automatic tape infeed by motor
Automatic tape guillotine

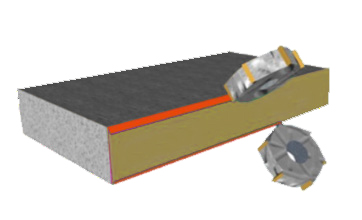

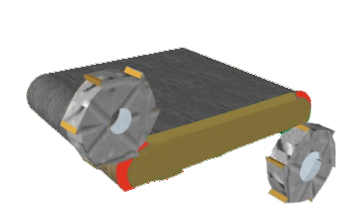

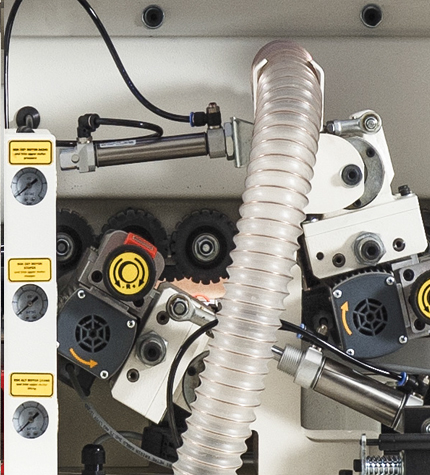

Top and Bottom trim, length trim, corner rounding

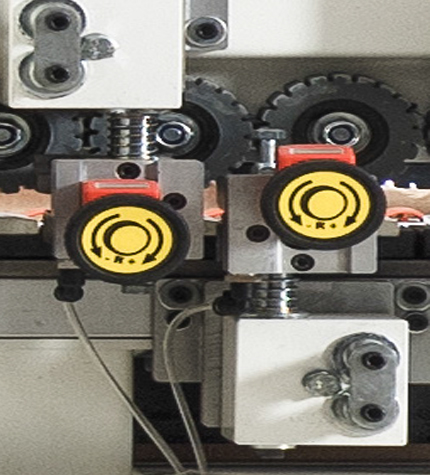

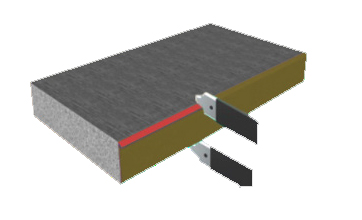

Smooth tape surface with radius scrapers

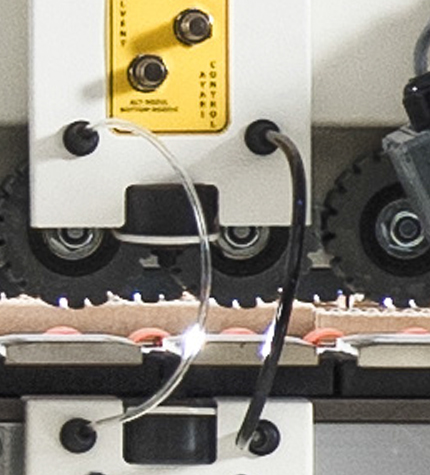

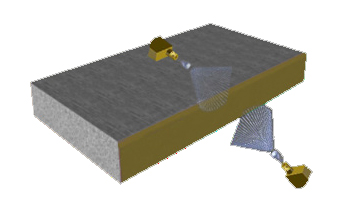

Solvent cleaners

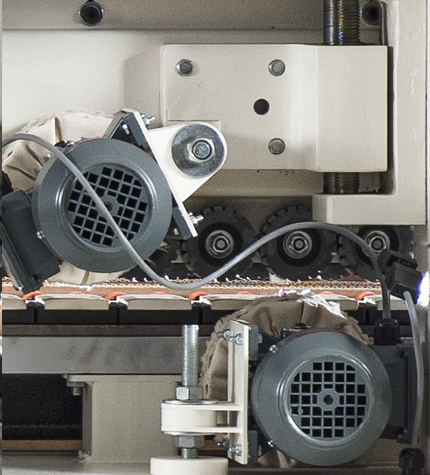

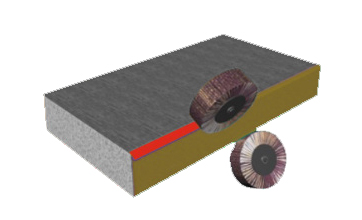

Clean and smooth panel surface with buffing
Integrated dust extractor

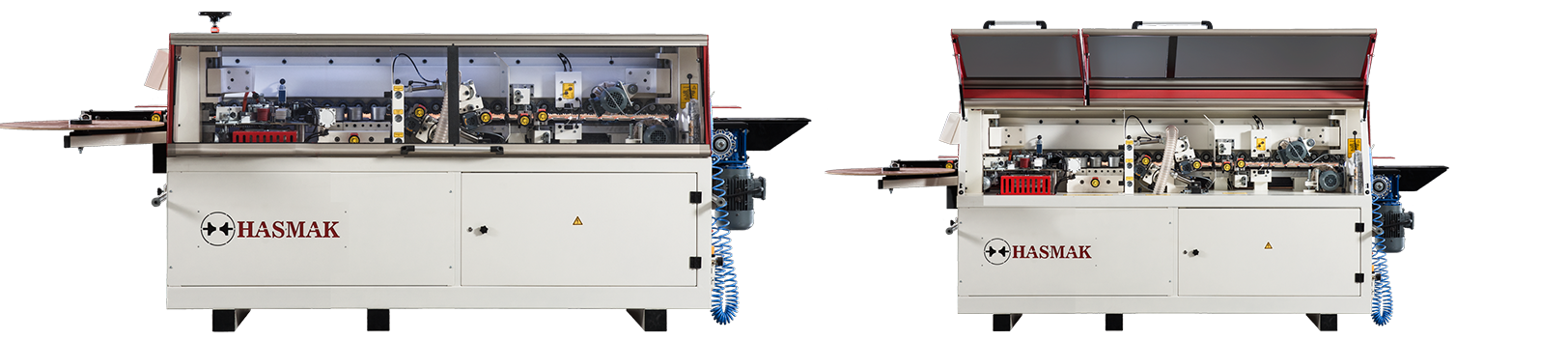

Lift up safety cover with internal lighting
Lateral Support rail For large panels
Tape support table
